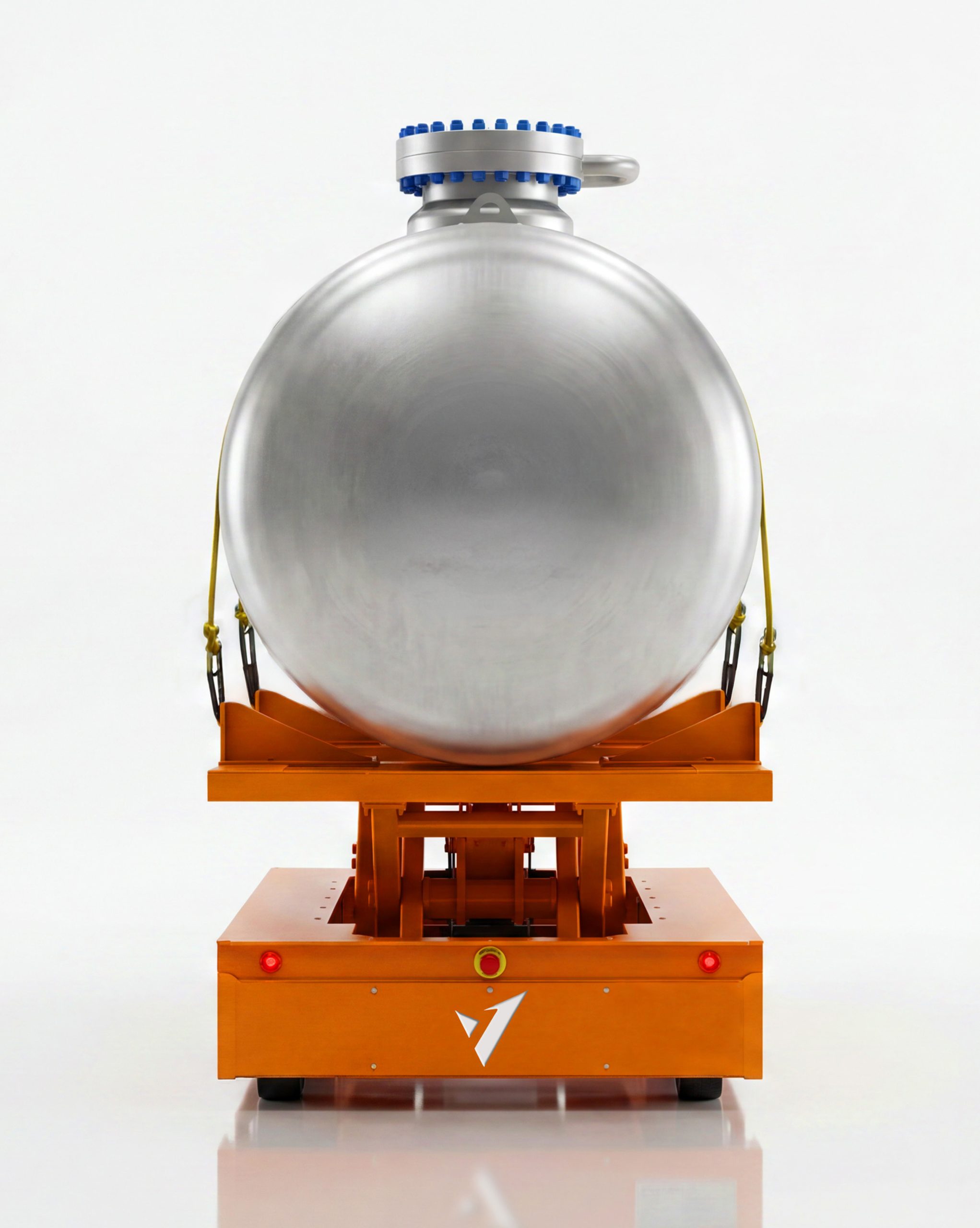

Pressure Vessel Transfer Cart

Pressure vessel transfer carts are specially designed for the safe and efficient handling of large pressure vessels that are difficult to transport and position during welded manufacturing processes on production lines. These battery-powered, trackless carts feature exceptional maneuverability and are equipped with integrated rotating systems that allow precise rotation of the vessels along desired axes. Thanks to this advanced functionality, they provide operators with enhanced convenience during welding operations, ensuring safe, accurate, and ergonomic access even to hard-to-reach areas. Engineered for pressure vessel transport, positioning, and maintenance applications, these transfer carts significantly improve workflow efficiency and workplace safety in industrial production environments.

Our Solutıons

SAFE, EFFICIENT, AND COST-EFFECTIVE SOLUTIONS FOR HANDLING HEAVY AND GEOMETRICALLY CHALLENGING LOADS

General Features

CAPACITYFROM 5 TONNES TO 100 TONNES
SPEED15 – 60 M/MIN
WHEELRUBBER / VULKOLLAN / POLYURETHANE
CONTROLREMOTE CONTROL
POWER SOURCEBATTERY
ROTATOR SPEEDLOAD SPECIFIC
DIMENSIONSLOAD-SPECIFIC DIMENSIONS
MOBILITYRAIL / TRACKLESS / OMNI-DIRECTIONAL MOVEMENT

Mods and Security

  • With rails: Provides linear movement back and forth on rails. With its high stability and precise positioning capability, it is the ideal solution especially for fixed lines and repetitive transports.
  • Standard Manoeuvring: Simple, cost-effective; used in large areas, with large turning radius (vertical, front axle, on rear wheel, rear axle turning)
  • Versatile Manoeuvring: Highest manoeuvrability; all wheels rotate independently, suitable for narrow spaces and precise loading/unloading (vertical, lateral, diagonal, crab movement, rotation on its own axis)
  • ±90° Movement: Intermediate solution; front axle rotates ±90°, providing a small turning radius. Commonly used on Fada’s battery powered transfer trolleys, ideal for compact and budget-friendly applications.

Power Supply and Motor Types

The main factors affecting the performance of transfer cars are the energy source used and the type of engine. Basically, three different energy sources are used:

  • Battery (Lithium/Gel Battery, Wireless/Contactless Energy Transfer)
  • Diesel Fuel
  • Hybrid (combined systems)

Motor types and energy supply options:

  • Electric motors
  • Hydraulic motors
  • AC motors
  • PMAC motors
  • Motorised or spring cable drum / cable chain

These combinations allow the transfer trolleys to provide maximum performance and flexibility in different applications.

Control Options

Operator Controlled

  • Wired remote control
  • Remote control
  • Vehicle driver (in cab)

Versatile control options are determined by operating environment, route length, speed and shift times

Autonomous Control – Natural Navigation

Self-steering without operator intervention, calculating the most efficient route and speed profiles.

Autonomous Control – Magnetic Lane Tracking

Provides precise and safe movement along a predetermined path. Works integrated with magnetic sensors and magnetic strips on the road.

After Sales Support and Spare Parts

As Velitix, we prioritise being a long-term solution partner with our customers. In after-sales processes, we are always with you and offer comprehensive support to ensure the uninterrupted operation of your business.

Our transfer trolleys are equipped with remote access technologies, allowing problems to be quickly diagnosed and resolved. We minimise operational disruptions by providing step-by-step guidance where necessary.

In addition to all these services, we also offer fast and reliable solutions to our customers in terms of spare parts supply.
